0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306

0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306

    • 0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306
    • 0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306
    • 0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306
  • 0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306

    Product Details:

    Place of Origin: CHINA
    Brand Name: For
    Model Number: 128x64 OLED

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Get latest price
    Packaging Details: Box/Carton
    Delivery Time: 2-4 work days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs per month
    Detailed Product Description
    Conditon: Others Part Name: OLED LCD
    Shipping Way: DHL,UPS,TNT,Fedex,EMS,Aramex,E-packet Warranty: 3 Months

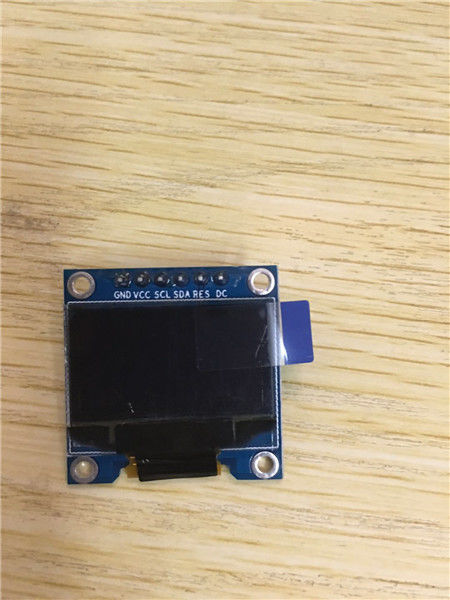

    0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306

    128*64 LED display module for Arduino, supports many control chip.
    Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
    Ultra-low power consumption: full screen lit 0.08W
    Super high brightness and contrast are adjustable
    With embedded driver/controller
    Interface type is IIC
    Pin Definition: GND, VCC ,SCL, SDA
    Pins: 4 pins
    Voltage: 3V ~ 5V DC
    Working Temperature: -30 ℃ ~ 70 ℃
    Character Colors: Blue/White/Yellow&Blue(as pictures show)
    Drive Duty: 1/64 Duty
    High resolution: 128 * 64
    Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
    Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
    Driver IC: SSD1306

    Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness

    Please Note:items are 4Pin



    Pictures:

    0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD13060.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD13060.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306



    0.96" Yellow/Blue/White 128X64 OLED I2C IIC Serial LCD LED SSD Display SSD1306
